High Resolution Inkjet Marking

TIJ Inkjet Printer

thumbnail Dotjet DJ45 Plus (up to 2 heads)
thumbnail Loogal ECJET 6 (6 heads)
thumbnail Loogal SAJET 4 (4 heads)

PIJ Inkjet Printer

thumbnail Dotjet DJ340
thumbnail Dotjet DJ2400 (up to 4 heads)

High Resolution Inkjet Printer

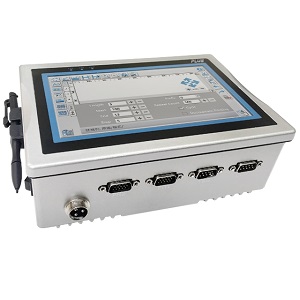

Dotjet DJ45 Plus

HP TIJ2.5 technology provides the best coding solution. 7” touch screen with DotW_QT software make the template creation simple to add and place print fields. The anti-shock mechanism is the print head standard equipment.

■ Features:

  • Print Head Connection Capability: One controller is available for controlling two different type of print heads allowing combination.
  • User-friendly and versatility operation software.
  • Diverse connection in connectivity.
  • Gather actionable data from across your production.
Model Dotjet DJ45 Plus
Print system HP TIJ 2.5
Print resolution 300 dpi
Max. Print height 12.7 mm
Max. print speed 60 Mtr/min (Water based ink), 90 Mtr/min (Solvent Ink
Connectivity Ethernet, RS232, USB, Encoder, Photocell
Display 7 inch touch screen
Supported print contents Text, Image, External Data, Counter, Barcode, Database Connection
Supported Barcode Barcode 1D: EAN8,EAN13,EAN128,CODE25,CODE39,CODE128, etc
Barcode 2D: PDF47, QRCODE, DATAMATRIX, etc
Power 110-220VAC 50/60Hz
thumbnail

High Resolution Inkjet Printer

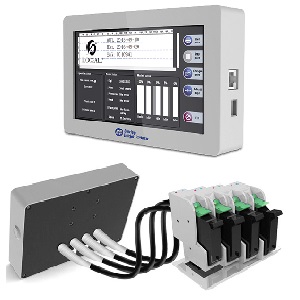

Loogal ECJET 6

EC Series Inkjet Printer is high resolution printer with touch screen developed on HP print tech, featured as high resolution and high print speed. It can control 1-6 print heads. It can print variable data including text, batch number, data of manufacture& expire date and image, matching with various kinds of production lines.

■ Features:

  • Operation interface with 7 inch touch screen make it easier to operate.
  • High system integration, small size, less component and easy to install and maintain.
  • Full metal shell, industrial design and stronger.
  • Take HP original driving board to make print effect higher quality.
Model ECJET 6
Print system HP TIJ 2.5
Print height 12.7mm ~ 76.2mm (6 heads)
Max print speed 45 Mtr/min (600x600 dpi), 90 Mtr/min (300x150 dpi)
Connectivity USB, Photocells, Encoder, Warning Light
Display 7 inch touch screen
Supported print contents Text, Image, Data, Counter (Barcode not supported)
Power 120W, 110-220VAC 50/60Hz
thumbnail

High Resolution Inkjet Printer

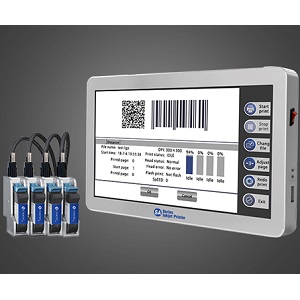

SAJET 4

SAJET is the third generation high resolution printer developed by Loogal based on HP TIJ2.5 tech, which adopts the most advanced control tech of LGCS . Users are easy to send command through interface to control printers and print content.

SAJET can support all fonts including True Type. What you edit and see is what will be printed out. Support various kinds of languages. The print content is not limited in the font ,size, lines , which is a breakthrough for traditional printers.

■ Features:

  • Easy operation,no need of any training.
  • Full metal shell,industrial design and stronger.
  • Take HP origial driving board to make print effect higher quality.
  • Wireless print head verify tech , more stable and capable.
Model SAJET 4
Print system HP TIJ 2.5
Print height 12.7mm ~ 50.8mm (4 heads)
Max print speed 60 Mtr/min (600x300 dpi), 120 Mtr/min (300x150 dpi)
Connectivity WIFI, USB, Photocells, Encoder, Warning Light
Display 10 inch touch screen IPC
Supported print contents Text, Image, Data, Counter, Barcode, Database Connection
Supported Barcode Barcode 1D: EAN8,EAN13,EAN128,CODE25,CODE39,CODE128
Barcode 2D: PDF47, QRCODE, DATAMATRIX
Power 110-220VAC 50/60Hz
thumbnail

High Resolution Inkjet Printer - PIJ

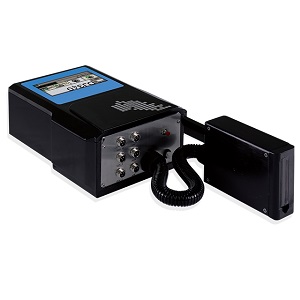

Dotjet DJ340

Compact and robust, high resolution inkjet printer. The best solution of coding and marking requirement. Easy and reliable exceed your expectation

■ Features:

  • Standalone: Print height through 1mm to 70mm on variety of substrates.
  • Flexibility in print message creation.
  • Advanced Ink Delivery System: Automatically ink prime, drain even one button can implement purging
Model Dotjet DJ340
Print system Piezo Inkjet System
Max. Print height 70 mm (PT510 Head)
Max. print speed 45 Mtr/min (185x200 dpi)
Connectivity Ethernet, RS232, RS485, Encoder, Photocell
Display 4.3 inch touch screen
Supported print contents Text, Image, External Data, Counter, Barcode, Database Connection
Supported Barcode Barcode 1D: EAN8,EAN13,EAN128,CODE25,CODE39,CODE128, etc
Barcode 2D: PDF47, QRCODE, DATAMATRIX, etc
Power 110-220VAC 50/60Hz
thumbnail

High Resolution Inkjet Printer - PIJ

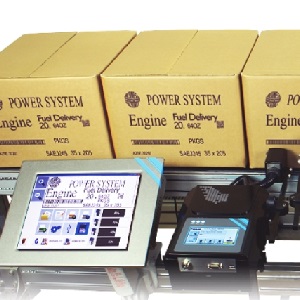

Dotjet DJ2400

The widest printing format on the market that still give a remakable high resolution for highest quality and clear print result. Equiped with the most powerfull controller that able to connect with up to 4 print head system on single controller. The controller give much flexibility for operator to manage each printhead over the network. Give you transparency into your packaging line operation and manage the print job remotely.

Up to 70 mm of print height give wide format print design, excelent for printing big size of products such as corrugated board / carton boxes, large aluminium panel, plastics containers etc.

■ Features:

  • Print Head Connection Capability: One controller is available for controlling four different type of print heads allowing combination.
  • Advanced Ink Delivery System: Automatically ink prime, drain even one button can implement purging.
  • Gather actionable data from across your production.
Model Dotjet DJ2400
Print system Piezo Inkjet System
Max. Print height 70 mm (PT510 Head)
Max. print speed 60 Mtr/min (185x200 dpi)
Connectivity Ethernet, RS232, RS485, Encoder, Photocell
Display Controller: 12 inch LCD touch screen
Print head system: 4.3 inch LCM module
Special Features Up to 4 printhead controll, Cloud Printing Solution
Supported print contents Text, Image, External Data, Counter, Barcode, Database Connection
Supported Barcode Barcode 1D: EAN8,EAN13,EAN128,CODE25,CODE39,CODE128, etc
Barcode 2D: PDF47, QRCODE, DATAMATRIX, AZTEC CODE etc
Power 110-220VAC 50/60Hz
thumbnail
