Semi-automatic Stretch Wrapper

thumbnail SM-1506
thumbnail SM-1517R

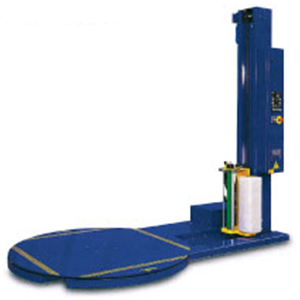

SM-1506

  • Made in Taiwan
  • Adjustable film carriage and turntable speed
  • Use AC motor, high stability & low maintenance
  • Film auto-breaking when wrapping cycle is completed
  • Top and bottom wrapping layer can be set from control panel
  • Compact and robust construction with universal turntable design, ensuring flexible operation in extreme working environment conditions.

Specification:

Model SM-1506 (Commercial)
Turntable Ø 1500mm
Turntable ground clearance 80mm
Max. Package Size 1300mm(L) x 1300mm(W)
Max. Wrapping Height 2100mm
Turntable speed 0 ~ 13 RPM
Film Carriage unit Ascending & Descending speed 0 ~ 3 m/min
Motor - Turntable 1/2 HP; 220V 1Ø or 380V 3Ø
Motor - Film Carriage Unit 1/4 HP; 220V 1Ø or 380V 3Ø
Max. Package Weight 1200 KG
Machine Dimension 2450mm x 1500mmØ x 2400mm
thumbnail

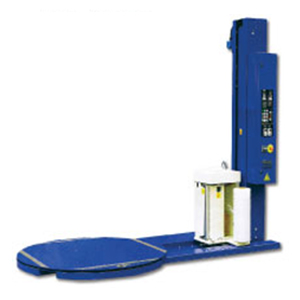

SM-1517R

  • Made in Taiwan
  • Top & bottom wrapping layers are set by input data.
  • Load height sensing photocell automatically adjusts wrapping cycle as load height varies.
  • Film tension adjustable to optimize film stretch capacity.
  • Auto film breakage device activates after wrapping cycle is completed to save time.
  • Adjustable turntable revolving speed allows for various settings.
  • Film carriage speed is adjustable according to overlap requirements.

Specification:

Model SM-1517R
Turntable Ø 1500mm
Turntable ground clearance 80mm
Max. Package Size 1300mm(L) x 1300mm(W)
Max. Wrapping Height 2100mm
Turntable speed 0 ~ 13 RPM
Film Carriage unit Ascending & Descending speed 0 ~ 3 m/min
Motor - Turntable 0.75 KW; 220V 3Ø
Motor - Pre-stretch 0.18 KW; 220V 3Ø
Max. Package Weight 2000 KG
Machine Dimension 2740mm x 1500mmØ x 2450mm
Machine Weight 579 KG
thumbnail
