Tab Tape Dispenser

Creats a tab at the edge of the tape. Ideal dispenser for part fixing or packing process in production lines

thumbnail EL-100A
thumbnail EL-200

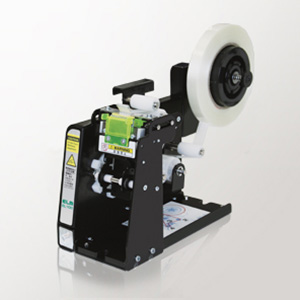

Tab Tape Dispenser

EL-100A

Creats a tab that makes it easy to remove. Designed for filament tape and temporary fixing tape


About an 18mm tab is created at the edge of the tape PAT.P. The tape length is adjustable at the set length. Ideal dispenser for production and packing line. Designed for filament tape and temporary fixing tape

Accepts width:
12-25mm
Adjustable tape lengt:
50-210mm (adjustable by 10 mm intervals)
Max outside diameter:
180mm
Size:
110(W) × 270(L) × 210(H) mm
Weight:
4,000 g
thumbnail

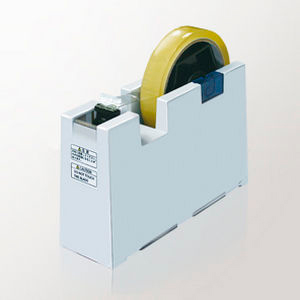

Tab Tape Dispenser

EL-200

About a 15 mm tab is created at the edge of tape. PAT.P. Ideal dispenser for light duty production, including simple packing. Designed for cellophane tape, thin OPP tape, and mending tape.

Accepts width:
12-19mm
Max outside diameter:
110mm (both for large & small reels)
Size:
55(W) × 180(L) × 110(H) mm
Weight:
1,200g
thumbnail
