Tying Machine

It is a machine that automatically ties and bundling items together using a plastic rope. Usually used for light weight products bundling such as, newspapers, magazines / books, etc.

Products:

  • Foods / Rice Pudding
  • Magazine / Books / Newspapers / Brochures / Flyers / Letters
  • Clothes / Bed Sheets / Towels
  • Woods / Planks
  • Cartons / Cardboards
  • Etc
thumbnail CY-25
thumbnail CY-60
thumbnail CY-100

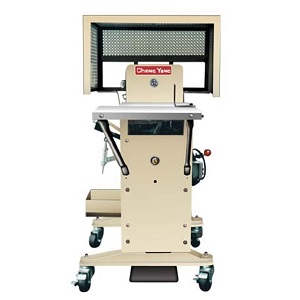

Tying Machine Model CY-25

This machine is suitable for tying the small and delicate or small batch objects such as: the publications of newspapers or magazines or any kinds of books, and the paper boards or the packing of clothing and foods, and the chemical products or the postal articles, and all the wood wares or other items which need to be tied and fixed well on the surface during the packing.

Specification:

Model CY-25
Min Tying Size | Max Tying Size 30 mm x 30 mm | 250 mm x 280 mm
Tying Table depth 230 mm
Tying Speed up to 60 ties / min
Power 1/4 HP (220VAC, 50Hz, 1Ø)
Machine Size (W x L x H) 560 x 900 x 1140 mm
Machine Weight 140 KG
Material PE Tying Tape
thumbnail

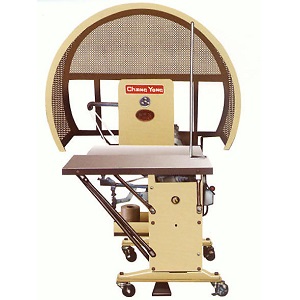

Tying Machine Model CY-60

This machine is suitable for tying the following objects such as: the publications of newspapers or magazines or any kinds of books, and the paper boards or the packing of clothing and foods, and the chemical products or the postal articles, and all the wood wares or other items which need to be tied and fixed well on the surface during the packing.

Specification:

Model CY-60
Min Tying Size | Max Tying Size 50 mm x 90 mm | 600 mm x 600 mm
Tying Table depth 260 mm
Tying Speed up to 60 ties / min
Power 1/4 HP (220VAC, 50Hz, 1Ø)
Machine Size (W x L x H) 1030 x 1020 x 1580 mm
Machine Weight 160 KG
Material PE Tying Tape
thumbnail

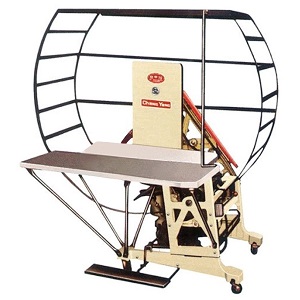

Tying Machine Model CY-100

This machine is suitable for tying the following objects such as: the publications of newspapers or magazines or any kinds of books, and the paper boards or the packing of clothing and foods, and the chemical products or the postal articles, and all the wood wares or other items which need to be tied and fixed well on the surface during the packing.

Specification:

Model CY-100
Min Tying Size | Max Tying Size 200 mm x 160 mm | 800 mm x 1000 mm
Tying Table depth 360 mm
Tying Speed up to 60 ties / min
Power 1/2 HP (220VAC, 50Hz, 1Ø)
Machine Size (W x L x H) 1530 x 1240 x 1700 mm
Machine Weight 230 KG
Material PE Tying Tape
thumbnail
